LSLV0037H100-2CONNPLUS LSLV0037H100-2CONNPLUS Ls Electric from South Side C-SouthSideControl

Print this page Email this page

67360004PL Variable frequency drive. 5 HP 230 VAC Modbus RTU, Metasys N2, BACnet, Current Rating 16 Amps in a 3 phase application.

Brand:LS Electric, Item:LSLV0037H100-2CONNPLUS, :165790

Product Availability

All Other Branches

Check Availability

1 In Stock

Price	Add to Cart
$910.70 EA $1,451.58

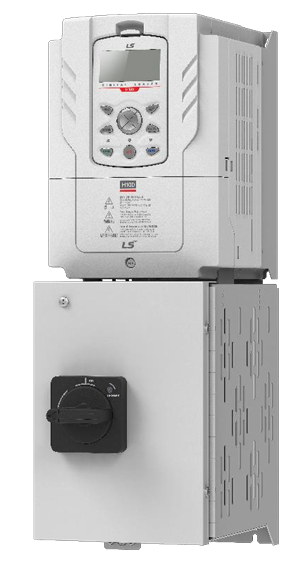

The LS Electric LSLV0037H100-2CONNPLUS is a variable frequency drive (VFD) from the H100+ series, designed for precision control of fan and pump applications in HVAC, water treatment, and industrial automation systems. This model delivers reliable motor speed regulation, energy efficiency, and adaptability to various motor types.

General Specifications:

Product Code: 67300004PL
Enclosure Rating: IP20, UL Type 1 (Optional)

Input Ratings (3-Phase):

Supply Voltage: 200~240 Vac
Rated Current (Heavy Duty/HD): 11.8 A
Rated Current (Normal Duty/ND): 17.5 A
Supply Frequency: 50~60 Hz

Input Ratings (1-Phase):

Supply Voltage: 240 Vac
Rated Current (HD): Not applicable
Rated Current (ND): 17.5 A
Supply Frequency: 60 Hz

Output Ratings (3-Phase Input):

Output Voltage: 200~240 Vac
Motor Power (HD): 3 hp (2.2 kW)
Motor Power (ND): 5 hp (3.7 kW)
Output Current (HD): 11 A
Output Current (ND): 16 A
Rated Capacity (ND): 6.1 kVA
Output Frequency: 0~400 Hz

Output Ratings (1-Phase Input):

Output Voltage: Not applicable
Motor Power (ND): 2 hp
Output Current (ND): 8.4 A

Performance:

Short Circuit Rating: 100 kA (IEC 60439-1)
Overload Capacity (HD): 150% for 1 minute
Overload Capacity (ND): 120% for 1 minute
Control Method: V/F Control (IM/PM), Slip compensation

I/O Terminals:

Input Terminals: 7 points
Output Terminals (Relay): 5 points
Output Terminals (Open Collector): 1 point

Communication:

Built-in: Modbus RTU, LS INV 485, BACnet/MSTP, Lonworks, MetaSys N2
Option: RAPIEnet+, EtherNet/IP, Modbus TCP, BACnet/IP
Option Card: Extension I/O, Remote cable (2/3m), Flange, Conduit, Disconnect switch

Environmental:

Ambient Temperature (HD): -10~50°C (14~122°F)
Ambient Temperature (ND): -10~40°C (14~104°F) (Up to +50°C with derate)
Storage Temperature: -20~65°C (-4~149°F)
Humidity: 95% RH or below (without dew formation)
Vibration: 9.8 m/sec² (1.0G) or below
Altitude: 1,000 m above sea level (Derate 1% per 100 m above 1,000 m; up to 4,000 m)

Certifications:

KC, CE, UL, cUL

Dimensions:

Frame: A
Width x Height x Depth: 160 x 232 x 181 mm (6.30 x 9.13 x 7.13 in)
